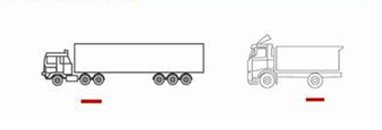

•Suitable for driving wheel position of middle/long distance trucks on various road conditions.
•Mixed pattern tread combine with open shoulder design effectively reduce heat generation on shoulder.
| Beneficios | Vehículo |
|---|---|
 |
 |
•Suitable for driving wheel position of middle/long distance trucks on various road conditions.
•Mixed pattern tread combine with open shoulder design effectively reduce heat generation on shoulder.
| Size | Ply Rating | Spd | Load Index (single/double) | Measure Rim (inch) | Max Load(kg) | Pressure(Kpa) | Inflated Dimensions | Tread Depth (mm) | Min. DualSpacin g (mm) | |||
| Single | Dual | Single | Dual | SW | OD | |||||||
| 11R22.5 | 16 | M | 146/143 | 8.25 | 3000 | 2725 | 830 | 830 | 279 | 1050 | 18.00 | 320 |
| 12R22.5 | 18 | K | 152/149 | 9.00 | 3550 | 3250 | 830 | 830 | 300 | 1084 | 18.00 | 343 |
| 13R22.5 | 18 | L | 154/151 | 9.75 | 3750 | 3450 | 830 | 830 | 320 | 1124 | 18.00 | 360 |
| 295/80R22.5 | 16 | M | 150/147 | 9.00 | 3350 | 3075 | 830 | 830 | 298 | 1044 | 18.00 | 335 |
| 315/80R22.5 | 18 | M | 154/151 | 9.00 | 3750 | 3450 | 830 | 830 | 312 | 1076 | 18.50 | 351 |
| 315/80R22.5 | 20 | K | 157/154 | 9.00 | 4125 | 3750 | 900 | 900 | 312 | 1076 | 18.50 | 351 |
